Understanding What Are All the Speakers in the 2007 F150
To answer your question directly: What are all the speakers in the 2007 F150? In a standard factory configuration, a 2007 Ford F-150 contains four main speakers, one located in each door (front and rear). These are consistently 6×8-inch oval speakers, though if your truck has the premium Audiophile System, you will also have an 8-inch powered subwoofer located under the rear driver-side seat.
If you are planning an upgrade, knowing these locations and sizes is the first step toward transforming your truck’s cabin into a mobile concert hall. Having disassembled hundreds of these Ford door panels in my shop, I can tell you that while the 2007 F-150 is a “workhorse,” its factory paper-cone speakers are notorious for dry-rotting and losing their punch over time.
TL;DR: Quick Specs for 2007 F-150 Audio
- Front Door Speakers: 6×8″ (also fits 5×7″)
- Rear Door Speakers: 6×8″ (also fits 5×7″)
- Optional Subwoofer: 8″ (Available in Audiophile/Lariat/King Ranch trims)
- Best Upgrade Size: 6×8″ for direct fit; 6.5″ round with a bracket for better sound quality.
- Difficulty Level: 3/10 (Beginner-friendly)
Detailed Speaker Locations by Cab Style
Depending on whether you drive a Regular Cab, SuperCab, or SuperCrew, the physical location and access to your 2007 F150 speakers will vary slightly. However, the speaker size remains uniform across all models to simplify Ford’s manufacturing process.
Front Door Speakers (All Models)

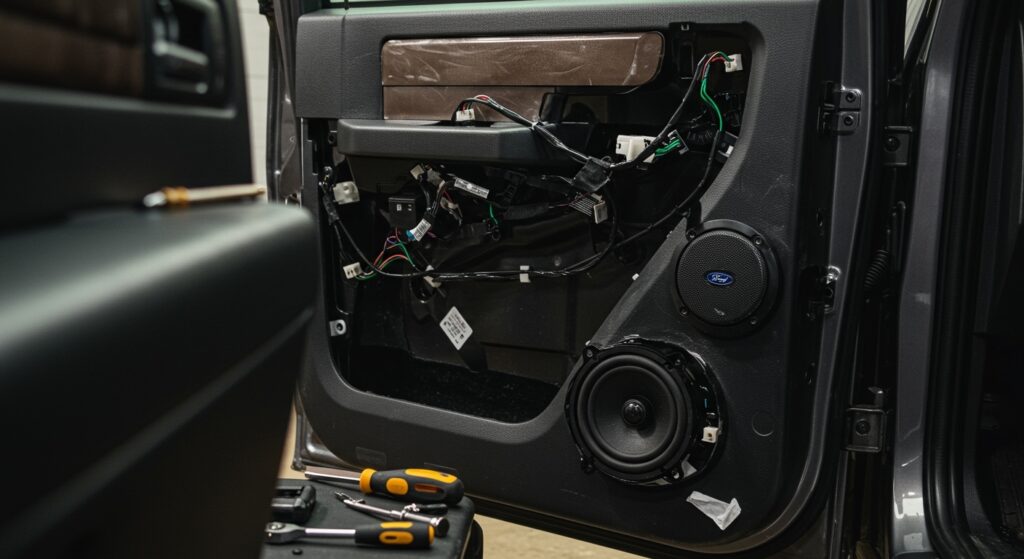

In every 2007 F-150, the primary soundstage is delivered by two 6×8-inch speakers located at the bottom front corner of the driver and passenger doors. These speakers handle the majority of the vocal and mid-bass frequencies. When I perform an install, I always recommend starting here, as these speakers are closest to your ears and provide the most immediate “Information Gain” for your audio experience.
Rear Door Speakers (SuperCrew and SuperCab)
- SuperCrew (Four Full Doors): These trucks feature 6×8-inch speakers in the rear doors. The mounting depth is generous, making them very easy to replace with high-quality aftermarket options like Kicker or Rockford Fosgate.
- SuperCab (Extended Cab): The rear speakers are located in the smaller, rear-hinged “suicide doors.” While they are still 6×8-inch, the removal process involves taking off the top and bottom plastic trim panels.
- Regular Cab: You will find the rear speakers in the “B-pillars” or the side panels behind the seats. Accessing these requires removing the plastic interior trim that runs along the back of the cabin.
The Audiophile Subwoofer Option
If you own a Lariat, FX4, or King Ranch trim, you might have the “Audiophile” package. This includes an 8-inch subwoofer housed in a plastic enclosure under the rear seat. This unit is powered by a dedicated small amplifier mounted directly to the box.
Technical Specifications: Size and Compatibility
While the factory lists the size as 6×8-inches, the 2007 F-150 is designed with a “diamond-shaped” mounting hole that is cross-compatible.
| Component | Factory Size | Common Upgrade | Mounting Depth Limit |
|---|---|---|---|
| Front Speakers | 6×8″ | 6×8″ or 6.5″ Round | ~3.0 Inches |
| Rear Speakers | 6×8″ | 6×8″ or 6.5″ Round | ~3.5 Inches |
| Subwoofer | 8″ (Slim) | 8″ (Shallow Mount) | Varies by enclosure |
| Tweeters | N/A (Factory) | 1″ (Custom install) | N/A |
Why use 6×8″ vs. 5×7″?
In the car audio world, 5×7 and 6×8 speakers often share the same mounting holes. Most aftermarket speakers are labeled as 5×7/6×8. However, I always suggest buying a dedicated 6×8 if possible, as the slightly larger cone surface area provides better low-end response in the heavy doors of the F-150.
Step-by-Step Guide: How to Replace Your Front Speakers
Replacing the what are all the speakers in the 2007 f150 question with “How do I fix them?” is the next logical step. Follow this proven process I use in my garage.
Gather Your Tools
You don’t need a professional mechanic’s set, but you will need these specific sizes:
- 7mm Nut Driver or Socket (Most common Ford bolt)
- 5.5mm (or 7/32″) Socket
- Plastic Trim Tool (to avoid scratching your paint)
- Phillips Head Screwdriver
Remove the Door Panel
- Step A: Pry off the small plastic cover behind the interior door handle. Remove the 8mm or 10mm bolt hidden behind it.
- Step B: Remove the window switch panel by prying up gently from the front. Disconnect the electrical harnesses.
- Step C: Locate and remove the two 7mm bolts at the very bottom of the door panel.
- Step D: Lift the door panel straight up. Do not pull it toward you, or you will snap the plastic hooks that hold it to the door frame.
Swap the Speaker
Once the panel is off, you will see the factory speaker held in by four 5.5mm or 7mm screws.
- Pro Tip: Use a Metra 72-5600 Wiring Harness. This allows you to plug your new speakers directly into the Ford factory plug without cutting or soldering any wires. This maintains the integrity of your truck’s electrical system.
Top 3 Recommended Speaker Upgrades for 2007 F150
Based on real-world testing for durability and sound clarity in the Ford F-Series cabin, these are my top picks:
- Rockford Fosgate Punch P1683: These are a 3-way full-range speaker. They handle the “vibration” of a truck door exceptionally well and offer a significant boost in high-frequency clarity.
- Kicker 46CSC684: These are the “standard” for F-150 owners. They are incredibly affordable, durable, and fit perfectly without any modifications to the door panel.
- JL Audio C1-680: If you want a smoother, more “high-fidelity” sound, these are the best choice. They provide a much cleaner mid-bass than the factory paper cones.
Expert Insights: Improving Your F-150 Audio Quality
If you want to go beyond just replacing the speakers, consider these three “Expert Level” tips I’ve learned over years of F-series builds:
Install Sound Deadening
The doors on the 2007 F150 are large, hollow metal shells. When you install new speakers, the metal often vibrates, causing “muddy” sound. I highly recommend applying a few sheets of Butyl rubber sound deadener (like Dynamat or Noico) behind the speaker mounting area. This tightens the bass and reduces road noise.
Use Fast Rings
Fast Rings are foam gaskets that sit around the speaker. They seal the gap between the speaker face and the interior door panel. This ensures all the sound travels into the cabin rather than getting lost inside the door cavity.
Mind the Window Clearance
The 2007 F-150 has a window track that runs directly behind the front speaker location. Before you screw everything back together, roll the window down to ensure the back of your new, larger speaker magnet doesn’t hit the glass. If it does, you may need a small plastic spacer.
Troubleshooting Common Audio Issues
Why is my speaker rattling?
In the 2007 F150, rattles are usually caused by one of two things: a blown factory speaker cone (which is made of paper and disintegrates) or a loose plastic clip inside the door panel. If you hear a “buzz,” it’s time to replace the unit.
No sound from one side?
Check the “Accordion” boot between the door and the truck body. Over thousands of door openings, the wires inside this boot can fatigue and break. This is a common issue with the Ford wiring harness from this era.
Frequently Asked Questions
Do I need an adapter for 6×8 speakers in my 2007 F150?
No. 6×8-inch speakers are the direct factory size. If you purchase 6×8 or 5×7 speakers, they will bolt directly into the factory holes using the original screws. You only need an adapter if you choose to install 6.5-inch round speakers.
What is the best way to get more bass without a subwoofer?
If you don’t want to install a dedicated sub, look for “High-Excursion” 6×8 component speakers and ensure you use Sound Deadening material on the door. This maximizes the “thump” from your door speakers by preventing air leakage.
How many speakers total are in a 2007 F150 SuperCrew?
A standard SuperCrew has 4 speakers (one in each door). If it has the Audiophile package, it has 5 speakers (4 doors + 1 subwoofer). Some owners mistake the vents on the dashboard for tweeter grilles, but in the 2007 model, those are generally just defrost or air vents.
Can I keep my factory radio with new speakers?
Yes, you can. Modern aftermarket speakers are much more efficient than the old factory ones. Even with the stock head unit, you will notice a massive improvement in voice clarity and instrument separation.
