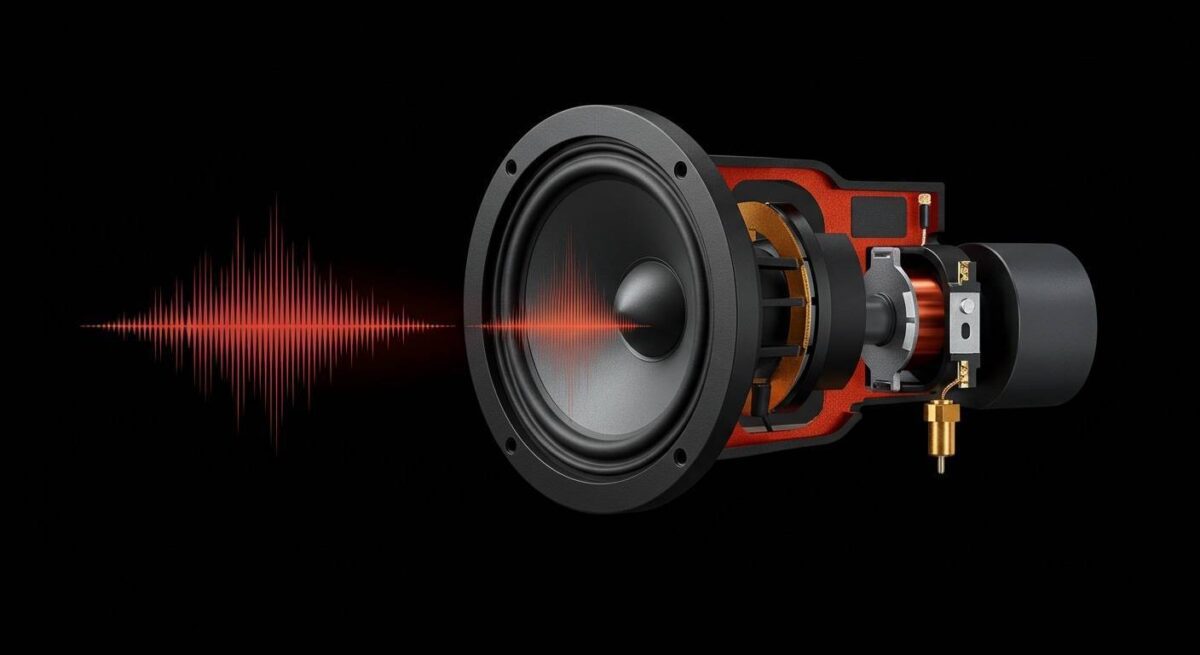

How Do Speakers Work? A Simple Diagram Explained

Ever cranked up your favorite song and wondered about the magic happening inside those speaker boxes? It seems complex, but the fundamental principle is surprisingly simple and elegant. You’re not alone in wanting a clear, no-fluff explanation. Many people search for a how do speakers work diagram because a visual breakdown makes the concept click.

At its core, a speaker is a transducer—a device that converts one form of energy into another. It takes an electrical audio signal from an amplifier and transforms it into mechanical vibrations. These vibrations push and pull the air, creating the sound waves that travel to your ears. This entire process relies on the fundamental physics of electromagnetism, and once you understand that relationship, the mystery of the speaker vanishes.

Key Takeaways: How a Speaker Works

  • Energy Conversion: Speakers convert electrical energy into sound energy (sound waves).
  • Core Components: The main parts are an electromagnet (voice coil), a permanent magnet, and a flexible cone (diaphragm).
  • The Process: An incoming audio signal energizes the voice coil, turning it into a rapidly changing electromagnet.
  • Movement Creates Sound: This electromagnet is repelled and attracted by the permanent magnet, causing it to vibrate. These vibrations are transferred to the cone, which moves the air to create sound.

The Basic Principle: How Do Speakers Work Diagrammatically

To truly understand how do speakers work, let’s visualize the process with a simple diagram in mind. Imagine a fixed, powerful permanent magnet. Attached to a flexible cone is a coil of wire (the voice coil) that sits just in front of that magnet, but not touching it. This simple arrangement is the engine of every common speaker.

The Science: Electromagnetism in Action

The magic lies in electromagnetism. When you pass an electric current through a coil of wire, it generates a magnetic field, turning the coil into an electromagnet. The direction of this magnetic field (its polarity, North or South) depends on the direction of the electrical current.

An audio signal is not a steady stream of electricity; it’s an alternating current (AC). This means its voltage rapidly fluctuates between positive and negative. When this signal is sent to the speaker’s voice coil, it causes the coil’s magnetic polarity to flip back and forth thousands of times per second, perfectly in sync with the music’s waveform.

Step-by-Step: From Electrical Signal to Sound Wave

Here’s a breakdown of the sequence, which you can easily trace on any how speakers work diagram.

  1. Audio Signal from Amplifier: Your phone, turntable, or TV sends a low-power electrical audio signal to an amplifier. The amplifier boosts this signal to a level powerful enough to drive the speaker.
  2. Current Enters the Voice Coil: The amplified signal flows into the voice coil, which is a tightly wound coil of thin copper wire.
  3. Electromagnet is Created: The alternating current turns the voice coil into a rapidly fluctuating electromagnet. Its North and South poles flip back and forth in perfect time with the audio signal’s frequency.
  4. Interaction with the Permanent Magnet: This electromagnet is now sitting within the magnetic field of the permanent magnet. According to the basic law of magnetism—opposites attract, likes repel—the voice coil is rapidly pushed and pulled.
  5. Diaphragm/Cone Moves: The voice coil is physically attached to the apex of a larger, flexible cone called the diaphragm. As the voice coil zips back and forth, it forces the entire cone to move with it.
  6. Air is Compressed and Decompressed: As the cone pushes forward, it compresses the air in front of it. As it pulls back, it creates a low-pressure area (rarefaction).
  7. Sound Waves are Born: This rapid sequence of air compression and rarefaction creates sound waves that radiate outwards from the speaker, eventually reaching your ears. The frequency of the waves determines the pitch, and the amplitude (how far the cone moves) determines the volume.

The Anatomy of a Speaker: A Deep Dive into the Components

While the principle is simple, a high-quality speaker is a finely tuned system of parts working in harmony. From my experience building and repairing speaker systems, I can tell you that the material and design of each component drastically affect the final sound quality.

The Driver: The Heart of the Speaker

The “driver” is the complete assembly that creates sound. A speaker cabinet can contain one or more drivers. A simple Bluetooth speaker might have one full-range driver, while a high-end tower speaker will have multiple specialized drivers.

  • Woofer: A large driver designed to reproduce low-frequency sounds (bass).
  • Mid-range: A medium-sized driver for middle frequencies, like human voices and most instruments.
  • Tweeter: A very small driver that handles high-frequency sounds (treble), like cymbals and hi-hats.

The Voice Coil: The Electrical Engine

The voice coil is the component that truly puts the “electro” in electro-acoustic. It’s a lightweight coil of wire, typically copper or aluminum, wrapped around a cylinder called a “former.”

When we test speakers, the voice coil is often the first point of failure. Pushing too much power from an amplifier can literally overheat and melt the wire’s thin insulation, causing a “blown” speaker. This is why matching your speaker’s power rating (watts) to your amplifier is critical.

The Magnet Assembly: The Unseen Powerhouse

This consists of the permanent magnet and the surrounding metal structure (the top plate, back plate, and pole piece) that focuses the magnetic field. The stronger this magnetic field, the more efficiently the speaker can convert electrical energy into motion, a characteristic known as speaker sensitivity.

  • Ferrite magnets are common and cost-effective.
  • Neodymium magnets are much stronger for their size and weight, often found in high-performance or compact speakers.

The Diaphragm (Cone or Dome): The Air Pusher

The diaphragm is the most visible part of the speaker. Its job is to be lightweight enough to move quickly but rigid enough to push air without deforming. The material choice here is a huge factor in a speaker’s sonic signature.

  • Paper: Treated paper is a classic material—light, cheap, and has excellent internal damping for a natural sound.
  • Polypropylene: A type of plastic that is very durable and resistant to moisture.
  • Kevlar/Carbon Fiber: Extremely rigid and lightweight, used in high-end speakers for precise, distortion-free sound.
  • Metals (Aluminum, Titanium): Often used for tweeters because their stiffness allows for very high-frequency reproduction.

The Suspension (Spider & Surround): The Precision Control System

The diaphragm can’t just flop around; its movement must be precisely controlled. This is the job of the suspension system.

  • The Surround: This is the flexible ring of rubber or foam that connects the outer edge of the cone to the speaker’s frame. It allows the cone to move in and out.
  • The Spider: Located behind the cone, this corrugated fabric piece holds the voice coil centered in the magnetic gap. It acts like a spring, pulling the cone back to its resting position.

Over time, especially the foam surrounds on older speakers, this suspension can degrade and crumble. This is a common repair I’ve performed many times to bring vintage speakers back to life.

The Basket: The Rigid Frame

The basket (or chassis) is the metal or plastic frame that everything is mounted to. Its only job is to be as rigid and non-resonant as possible, providing a stable platform for the moving parts to do their work without adding any unwanted vibrations.

The Enclosure (Cabinet): The Final Sound Shaper

The box the driver is mounted in, the enclosure, is far more than just a container. It plays a critical role in the speaker’s bass response.

  • Sealed (Acoustic Suspension): An airtight box. This design offers tight, accurate bass but is less efficient.
  • Ported (Bass Reflex): An enclosure with a hole or “port.” This port uses the sound coming from the back of the cone to reinforce the bass coming from the front, resulting in louder, deeper bass. Watching a how speakers work video of a ported speaker with smoke or powder inside can really help visualize how the air moves.

The Physics of Sound: A Deeper Look at How Speakers Work

Understanding the components is one thing, but understanding the physics they manipulate is another. Let’s break down how electricity becomes the sound you hear.

Energy Conversion Chain

The entire process is a chain of energy conversions:

  1. Electrical Energy: The audio signal from the amplifier.
  2. Magnetic Energy: The fluctuating magnetic field in the voice coil.
  3. Kinetic (Mechanical) Energy: The physical back-and-forth movement of the cone.
  4. Acoustic Energy: The sound waves created by the cone moving the air.

Frequency, Pitch, and Driver Size

Why are woofers big and tweeters small? It all comes down to frequency.

  • Low Frequencies (Bass): These are long, slow sound waves. To create them, you need to move a large volume of air. This requires a large cone (a woofer) that can make large, slow movements.
  • High Frequencies (Treble): These are very short, fast sound waves. To create them, you need a small, lightweight diaphragm (a tweeter) that can vibrate incredibly quickly—often more than 20,000 times per second.

This is why multi-driver speakers use a crossover, which is an electronic filter that directs the correct frequencies to the appropriate driver.

Comparing Speaker Driver Types

| Driver Type | Frequency Range (Approx.) | Cone Size | Cone Material Examples | Primary Function |
| :— | :— | :—
