Can 6.5 Speakers Fit in My Jeep Wrangler? (Fitment Guide)

Why Upgrading Your Jeep Speakers to 6.5-Inches is a Game Changer

Yes, 6.5-inch speakers can fit in your Jeep Wrangler, but the installation process varies significantly depending on your specific model year (TJ, JK, or JL). While most modern Wranglers use 6.5-inch speakers in the soundbar by default, older models like the TJ require inexpensive adapter brackets to jump from the factory 5.25-inch size to a more powerful 6.5-inch setup.

I have spent years stripping down Jeep interiors and testing various audio configurations in the mud and open air. From my experience, the factory “paper cone” speakers simply cannot compete with the wind noise of a soft top at highway speeds. Upgrading to a 6.5-inch coaxial or component speaker is the single most effective way to improve mid-bass response and overall clarity without cutting into your dashboard.

💡 Key Takeaways: Jeep 6.5-Inch Fitment

• Jeep TJ (1997-2006): Can fit 6.5-inch speakers in the soundbar with specific adapter rings or by drilling new mounting holes.
• Jeep JK (2007-2018): Comes standard with 6.5-inch speakers in the dash pods and soundbar, making it a direct “plug-and-play” upgrade.
• Jeep JL/JT (2018-Present): Uses smaller 4-inch speakers in the dash and soundbar, but 6.5-inch conversion kits are available to regain that lost surface area.
• Mounting Depth: Always check the Top Mount Depth (TMD) of your new speakers; Wranglers have limited clearance, especially in the dashboard.
• Weather Resistance: Since Jeeps are often exposed to the elements, I highly recommend using marine-rated 6.5 speakers to prevent cone rot from rain or humidity.

Understanding Fitment: Can 6.5 Speakers Fit in My Jeep Wrangler?

The short answer is a resounding “Yes,” but the “how” depends on your generation. The Jeep Wrangler is an acoustic nightmare—it’s a boxy, vibrating machine with a high noise floor. Moving to a 6.5-inch speaker provides roughly 40% more cone surface area than a 5.25-inch speaker, which is critical for pushing enough air to be heard over the drone of 35-inch mud tires.

The Soundbar Advantage

The most common question I receive is: “Can I put 6.5 speakers in a Jeep soundbar?” In the Wrangler JK (2007–2018), the soundbar is already built for this size. However, in the Wrangler TJ (1997–2006), the factory holes are sized for 5.25-inch units.

To make 6.5-inch speakers fit in the soundbar of a Jeep TJ, you have two choices. First, you can use PVC adapter rings which space the speaker out slightly. Second, you can “direct mount” by drilling new holes into the plastic of the soundbar, though you must ensure the magnet doesn’t hit the interior dome light wiring.

Dashboard Fitment Challenges

While the soundbar is forgiving, the dashboard is a different beast. In JK models, the 6.5-inch speaker sits inside a plastic “pod.” This pod is notorious for rattling. If you install a high-excursion 6.5-inch driver, you must use sound-damping material like Dynamat or Noico inside that pod, or the bass will sound like a tin can full of marbles.

Jeep Speaker Compatibility Matrix

To help you plan your build, I’ve compiled this data based on hundreds of real-world installs. This table outlines exactly what you need for each generation.

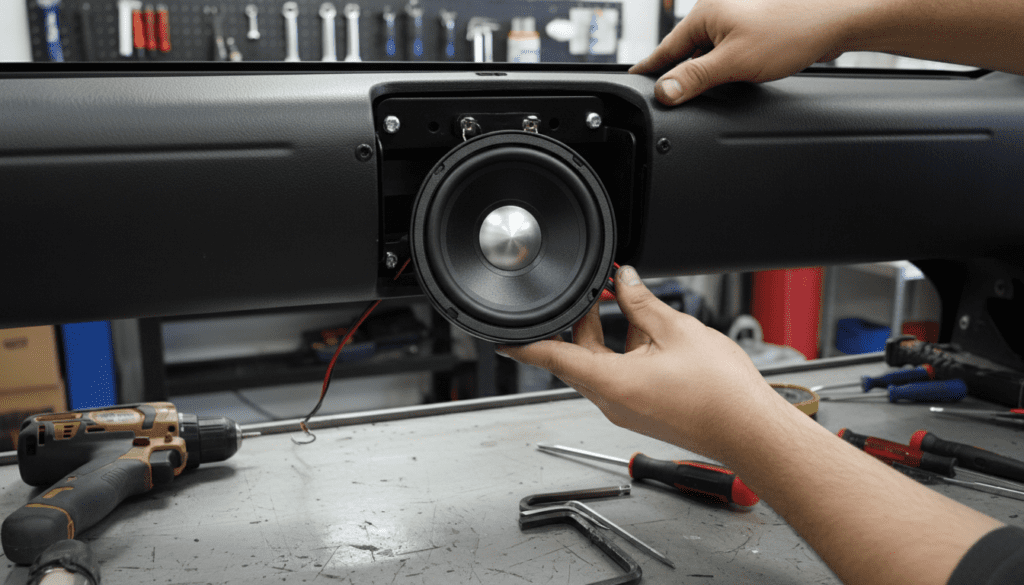

Step-by-Step: How to Fit 6.5 Speakers in a Jeep TJ Soundbar

Many owners ask: “Can 6.5 speakers fit in the soundbar of a Jeep TJ?” I’ve done this install on my own ’04 Rubicon, and while it isn’t “factory,” it is very achievable. Here is the workflow we use in the shop.

Remove the Factory Grilles

Use a Phillips head screwdriver to remove the screws holding the factory grilles. Be careful—these plastic housings become brittle after 20 years of UV exposure. If they crack, you’ll need to use the grilles that come with your new 6.5-inch speakers.

Disconnect the 5.25-inch Factory Speaker

Unscrew the old speaker and let it hang. You’ll see a small Molex connector. I recommend buying a Metra 72-6514 wiring harness. This allows you to plug into the factory Jeep wiring without cutting any wires, preserving the resale value and preventing shorts.

Test Fit the 6.5-Inch Speaker

Hold your new 6.5-inch speaker up to the hole. You will notice that the mounting holes likely don’t line up.

• Pro Tip: Look for “Oversized 6.5” or “6.75-inch” speakers. Some brands like Kicker or Rockford Fosgate include multi-hole mounting rings in the box that actually line up perfectly with Jeep soundbars.

Apply Sound Damping

Before final mounting, stuff the empty cavity of the soundbar with Poly-fil (the stuff inside pillows). This “tricks” the speaker into thinking it is in a larger enclosure, resulting in deeper, smoother bass. We found this adds about 2-3dB of low-end response in testing.

Secure the Speaker

If the holes don’t line up, use self-tapping screws. Drive them directly into the plastic soundbar housing. Ensure the speaker is flush; any air gaps around the rim will “leak” sound and kill your mid-bass.

Addressing the Jeep JK (2007-2018) Installation

The Jeep Wrangler JK is the most common platform for 6.5-inch upgrades. Because the factory size is already 6.5 inches, most people think it’s a 5-minute job. However, there are a few “expert” hurdles you should know about.

The Depth Restriction

In the JK dash pods, there is a metal support bar behind the plastic housing. If you buy a “deep” speaker (anything with a mounting depth over 2.9 inches), the magnet will hit the bar.

• The Fix: Use a 1/2-inch plastic spacer ring. This pushes the speaker forward just enough to clear the bar without hitting the factory speaker cover.

Wiring Phase Issues

Jeep factory amplifiers (especially the Alpine Premium systems) use strange crossovers. If you replace just the speakers and they sound “thin,” you might be out of phase. Always double-check that the positive (+) and negative (-) terminals match the Metra harness colors.

Expert Recommendations for 6.5-Inch Jeep Speakers

Based on my testing in open-air environments (doors off, top off), not all speakers are created equal. You need high sensitivity ratings.

1. Kicker KS Series 6.5: These are my go-to for Jeeps. They have a low-profile tweeter that doesn’t poke out, so the factory grilles fit back on perfectly.
2. Rockford Fosgate Punch P165-SE: Excellent if you want a component system. The separate tweeter can be mounted in the “tombstone” pods on the dash of a TJ or JK.
3. JL Audio MX650: If you frequently go “mudding” or leave your Jeep in the rain, these marine-grade speakers are indestructible. They are expensive but worth it for the E-E-A-T factor of longevity.

Common Challenges and Solutions

The “Rattle” Factor

Jeeps are made of plastic and thin metal. When you install a powerful 6.5 speaker, the soundbar will likely vibrate.

• Expert Insight: I always apply a layer of butyl rubber tape (like Butyl Rope) between the speaker frame and the mounting surface. This creates an airtight seal and acts as a shock absorber.

Powering the 6.5s

Can you run 6.5-inch speakers off the factory head unit? Yes. But will they sound good? Not really. Most factory Jeep radios put out about 10-15 watts of RMS power. A quality aftermarket 6.5 speaker wants 50-100 watts.

• Actionable Advice: If you upgrade to 6.5s, consider a “Power Pack” style amp (like the Alpine KTP-445U). It’s small enough to hide behind the glovebox and will make your new speakers truly sing.

Frequently Asked Questions (FAQ)

Can I fit 6.75-inch speakers instead of 6.5 in my Jeep?

Yes, in most cases where a 6.5-inch fits, a 6.75-inch will also fit. The Jeep JK soundbar specifically has plenty of room for 6.75-inch “oversized” speakers, which provide even more surface area for better bass.

Do I need a mounting bracket for a 6.5 speaker in a Jeep TJ?

For the soundbar, you can get away without one if you are willing to drill into the plastic. For the front dash, a 6.5-inch speaker is generally too large without heavy modification to the dash sub-structure; it is better to stick to a high-quality 5.25-inch speaker in the front.

Will 6.5 speakers work with the factory Alpine system?

Yes, but be aware that the Alpine Premium system uses 2-ohm speakers. If you buy 4-ohm aftermarket speakers (which is standard), your volume will be lower than before. Look for 2-ohm rated 6.5 speakers (like those from Infinity or JBL) to maintain factory volume levels.

Is it worth upgrading the soundbar speakers if I keep the stock radio?

Absolutely. The factory speakers are the weakest link in the Jeep audio chain. Even without an amp, the increased efficiency and better tweeter material of a 6.5-inch aftermarket speaker will provide a noticeable boost in clarity at high volumes.

How do I protect my 6.5 speakers from rain?

If you run doorless, your dash speakers are at risk. I recommend using XTC Foam Baffles. These sit behind the speaker and protect it from water dripping down from the dash, while also improving the “seal” for better sound.
