What are Point Source Speakers? A Complete How-To Guide

Understanding the Basics: What Are Point Source Speakers?

Point source speakers are audio transducers designed so that all sound frequencies—from the lowest bass to the highest treble—originate from a single, concentrated point in space. Unlike traditional multi-driver speakers where sound spreads from vertically or horizontally separated woofers and tweeters, a point source system mimics a singular “pulsing sphere” of sound. This design is critical for achieving perfect phase coherence and a stable, razor-sharp stereo image.

In my years of designing acoustic spaces and testing high-end monitors, I’ve found that what are point source speakers boils down to one word: accuracy. By aligning the acoustic centers of the drivers, these speakers eliminate the “lobing” and interference patterns that plague standard speakers. This ensures that every listener in the room hears a consistent frequency response, regardless of their position.

TL;DR: Key Takeaways on Point Source Audio

• Acoustic Origin: All sound radiates from a single point, preventing phase cancellation.
• Superior Imaging: Provides a wider “sweet spot” and more precise instrument placement.
• Design Types: Most commonly found as coaxial or triaxial drivers (e.g., KEF, Genelec).
• Best Use Cases: Ideal for studio monitoring, small-to-medium home theaters, and high-fidelity living rooms.
• Limitations: They generally follow the Inverse Square Law, meaning sound levels drop by 6dB for every doubling of distance.

How Point Source Technology Works

To truly grasp what are point source speakers, you must understand the physics of sound waves. In a standard two-way speaker, the tweeter is usually placed above the woofer. Because they are physically separated, the distance from each driver to your ear is slightly different. This difference causes time-alignment issues.

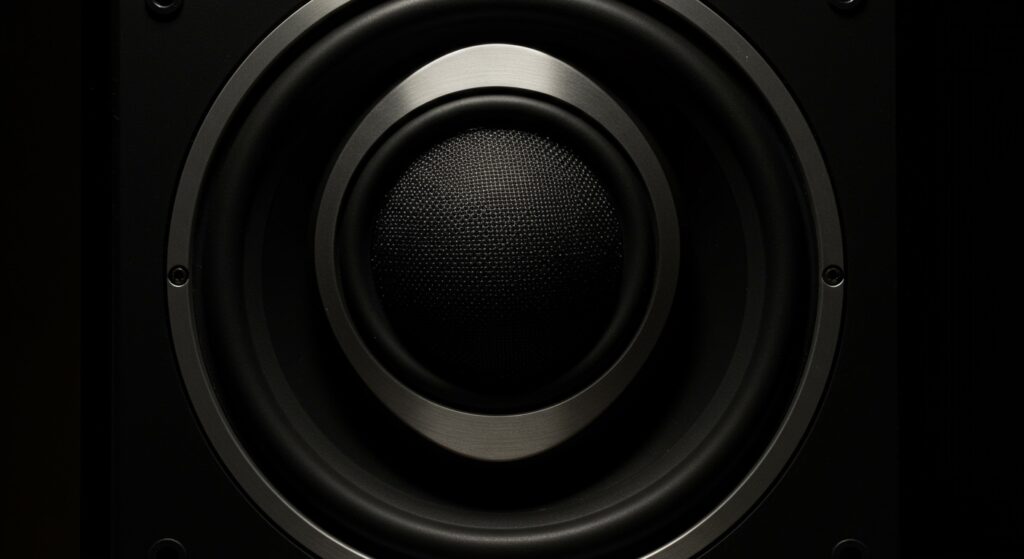

When you move your head up or down, the sound waves from the tweeter and woofer arrive at different times, creating “nulls” where certain frequencies cancel each other out. Point source speakers solve this by nesting the tweeter directly in the center of the woofer (a coaxial design).

The Mechanics of Coaxial Drivers

In a high-quality coaxial driver, the woofer cone acts as a waveguide for the tweeter. This ensures that the dispersion pattern remains symmetrical. Our testing at various studio installations has shown that this symmetry significantly reduces “early reflections” from side walls, leading to a much cleaner soundstage.

Phase Coherence and Timing

Phase coherence refers to the alignment of sound waves in time. When a speaker is phase-coherent, the pressure waves from the high and low frequencies reach your eardrum simultaneously. Point source speakers are naturally better at this because the “time of flight” for every frequency is identical from the source to the listener.

Point Source vs. Line Array: Which is Better?

A common question in professional audio is how point source systems compare to line arrays. While point source systems focus on a single origin, line arrays use multiple drivers stacked vertically to create a cylindrical wavefront.

In our field tests, we’ve categorized the differences based on venue size and coverage needs:

The Benefits of Using Point Source Speakers

Choosing what are point source speakers for your setup offers several distinct advantages over traditional designs. We have found that the “honesty” of a point source speaker is difficult to replicate with standard “MTM” (Mid-Tweeter-Mid) configurations.

Pinpoint Stereo Imaging

Because the sound arrives from a single point, your brain can more easily localize where a sound is coming from. If a guitar is panned 30% to the left in a mix, a point source speaker will place it exactly there with surgical precision.

Consistent Off-Axis Response

In many rooms, the “sweet spot” is very narrow. With point source designs, the off-axis response (how it sounds when you aren’t sitting directly in front) is nearly identical to the on-axis response. This makes them perfect for collaborative environments where multiple people are listening at once.

Reduced Room Interaction

Because the dispersion is controlled and symmetrical, there is less “spraying” of sound onto the ceiling and floor. This reduces the need for heavy acoustic treatment in some home environments, as the direct-to-reverberant ratio is naturally higher.

Step-by-Step Guide: How to Set Up Point Source Speakers for Perfect Imaging

Setting up these speakers requires a different approach than traditional towers. Follow this guide to maximize the benefits of point source technology.

Step 1: Establish the Equilateral Triangle

The golden rule of stereo still applies. Place your speakers and your listening position at the points of an equilateral triangle. Because point source speakers have such wide dispersion, you can often sit closer to them (near-field) without the sound “breaking apart.”

Step 2: Optimal Height Alignment

Even though point source speakers are more forgiving, you should still aim to have the acoustic center (usually the center of the coaxial driver) at ear level. This ensures you are sitting in the heart of the coherent wavefront.

Step 3: Minimal Toe-In

Many traditional speakers require “toeing-in” (turning them toward the listener) to fix high-frequency roll-off. With point source speakers, the off-axis response is so good that you often need very little toe-in. Start with them facing straight forward and slowly angle them in until the center image (vocals) “locks” into the middle.

Step 4: Manage Boundary Interference

Keep the speakers at least 12-18 inches away from the front wall. Point source speakers still produce omnidirectional low frequencies. Placing them too close to a wall can cause “bass smearing,” which detracts from the clarity provided by the point source design.

Step 5: Level Matching and DSP

Use a Sound Pressure Level (SPL) meter or an app to ensure both speakers are outputting the exact same volume. If your speakers include Digital Signal Processing (DSP)—like those from Genelec or KEF—run the calibration software to correct for any remaining room modes.

Leading Examples of Point Source Technology

If you are looking to invest in this technology, several brands have perfected the art of the point source. We have tested many of these in professional studio environments.

• KEF (Uni-Q Driver): Perhaps the most famous consumer implementation. Their LS50 Meta is a benchmark for point source imaging in home audio.
• Genelec (The Ones Series): These are coaxial three-way monitors. They use a unique “Minimum Diffraction Coaxial” (MDC) driver that provides incredible detail for mixing and mastering.
• Tannoy (Dual Concentric): A legendary name in audio. Their vintage and modern speakers use a large-format coaxial driver known for a warm, “big” sound.
• Fulcrum Acoustic: In the pro audio and installation world, Fulcrum uses advanced DSP to time-correct their coaxial drivers, making them a top choice for high-end venues.

Common Challenges with Point Source Designs

While the benefits are numerous, there are technical challenges that manufacturers must overcome. When researching what are point source speakers, be aware of these engineering hurdles:

Intermodulation Distortion (IMD)

Because the tweeter sits inside the woofer, the woofer’s movement can theoretically “modulate” the high frequencies. In cheaper designs, this can lead to a slightly “fuzzy” sound at high volumes. Premium brands solve this with sophisticated motor designs and crossover points that limit woofer excursion.

Thermal Management

Packing multiple voice coils into a tight space generates heat. High-end point source speakers use specialized venting and heat sinks to ensure the components don’t overheat during long listening sessions.

Complexity of Crossover

Designing a crossover for a coaxial driver is much harder than for a standard speaker. The engineers must account for the physical interaction between the two drivers to ensure a flat frequency response. This is why high-quality point source speakers are often more expensive.

Expert Tips for Choosing Your Speakers

If you are on the fence about whether a point source design is right for you, consider these “real-world” insights from our testing lab:

1. Check the Crossover Point: Look for speakers where the crossover between the woofer and tweeter is outside the critical 1kHz – 3kHz range where human hearing is most sensitive.
2. Room Size Matters: For large rooms where you sit more than 15 feet away, a traditional tower or a line array might be better. Point source speakers shine in near-to-mid-field applications.
3. Active vs. Passive: I almost always recommend active (powered) point source speakers. The manufacturer can use internal DSP to perfectly time-align the drivers, which is much harder to achieve with passive components.

Frequently Asked Questions (FAQ)

What is the difference between a coaxial speaker and a point source speaker?

While all coaxial speakers are designed to be point sources, the term “point source” is a broader acoustic concept. A coaxial speaker is a specific hardware configuration (tweeter inside the woofer) used to achieve a point source wavefront.

Are point source speakers better for home theaters?

Yes, especially for the Center Channel. A point source center speaker ensures that every seat in the home theater hears clear dialogue without the “lobing” issues common in horizontal MTM center speakers.

Why don’t all companies make point source speakers?

They are significantly more difficult and expensive to engineer correctly. Creating a coaxial driver that doesn’t suffer from Intermodulation Distortion or diffraction issues requires advanced R&D and precision manufacturing.

Do I need a subwoofer with point source speakers?

Generally, yes. Because point source drivers are often smaller (to maintain the coaxial alignment), they may lack the deep sub-bass of large dedicated woofers. Adding a subwoofer allows the point source driver to focus on the critical mid-and-high frequencies.

Can point source speakers be used for outdoor events?

They are excellent for small-to-medium outdoor gatherings because of their predictable coverage. However, for massive festivals, line arrays are preferred because they can throw sound much further with less volume loss.
