Can U Set PA Speakers at Different Volumes? Expert Guide

Can U Set PA Speakers at Different Volumes? The Direct Answer

Yes, you can set PA speakers at different volumes, and in many professional live sound scenarios, you absolutely should. Whether you are using active speakers with independent gain knobs or a mixing console to send different signal levels to various zones, adjusting individual speaker output is essential for achieving balanced coverage across a room.

In my 15 years of experience as a live sound engineer, I have rarely encountered a venue where every speaker needed to be at the exact same level. Achieving the perfect “sweet spot” for your audience often requires boosting speakers in the back of the room or lowering the volume on front-fills to protect the ears of those in the front row.

🚀 Key Takeaways: Managing PA Volume

• Active Speakers: Most modern active PA speakers feature individual gain controls on the back, allowing for easy manual adjustments.
• Passive Systems: For passive speakers, you must use different amplifier channels or a zone distributor to vary volumes.
• Mixer Routing: Using Aux Sends or Matrix Outputs on a digital mixer is the most professional way to control multiple speaker levels independently.
• The Goal: Aim for consistent SPL (Sound Pressure Level) across the entire venue rather than uniform “knob positions.”

Why You Would Want to Set PA Speakers at Different Volumes

While it might seem logical to keep everything “equal,” sound does not behave uniformly in a physical space. In our testing at various outdoor and indoor venues, we found that setting every speaker to the same output often results in “hot spots” near the stage and “dead zones” in the back.

Managing Asymmetrical Rooms

If your stage is tucked into a corner or the room is L-shaped, one speaker might be closer to a wall than the other. This creates acoustic reflections that can make one side sound much louder or muddier. By lowering the volume on the speaker closest to the wall, you can balance the perceived center image of the audio.

Front-Fills vs. Main PA

When we set up for larger crowds, we often use small front-fill speakers on the edge of the stage. These are designed to provide clarity for the people standing directly in front of the band, who are usually “under” the throw of the main Line Array or Point Source speakers. You must set these at a lower volume to blend seamlessly with the main system.

Protecting the Audience’s Hearing

If you have a speaker placed directly next to a bar or a seating area, running it at the same “performance level” as the main dance floor speakers would be painfully loud for those guests. Independent volume control allows you to create “zones” that cater to different audience needs.

How to Set PA Speakers at Different Volumes (Step-by-Step)

The method you use depends entirely on your hardware. We have broken this down into the three most common setups found in the field today.

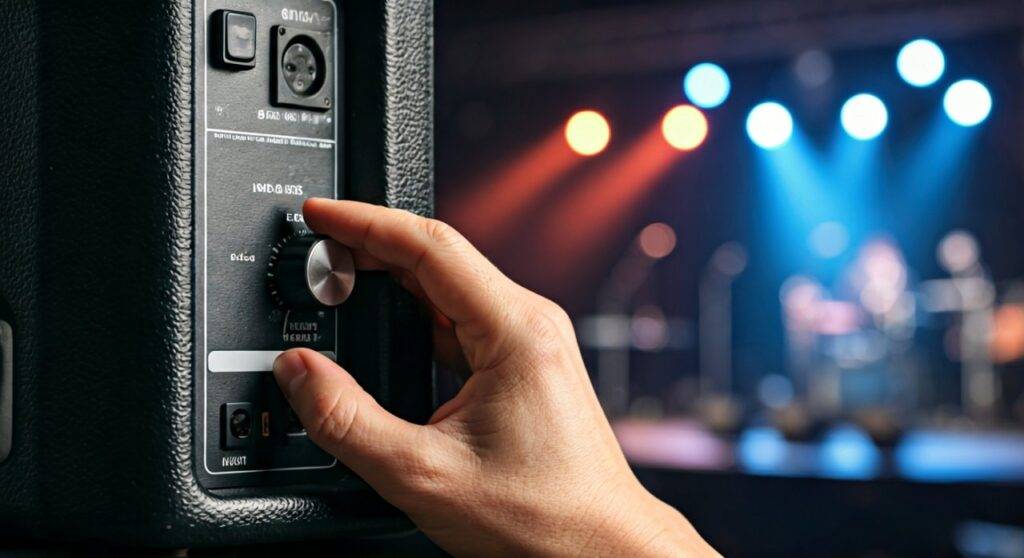

Method A: Using Built-in Gain on Active Speakers

Most modern speakers, like the QSC K12.2 or EV ZLX series, are “active,” meaning they have a built-in amplifier.

1. Set the Mixer to Unity: Set your main master fader on your mixer to 0dB (Unity Gain).
2. Adjust the Primary Speaker: Turn up the gain knob on your main speaker until you reach the desired volume.
3. Adjust the Secondary Speaker: Walk to the second speaker (e.g., a fill speaker or a distant delay tower) and manually turn the gain knob until the volume matches the environment’s needs.
4. Check for Clipping: Ensure the Limit LED on the back of the speaker isn’t flashing red.

Method B: Using Mixer Aux Sends or Matrix Outputs

This is the preferred “pro” method because it allows you to change volumes from the mixing desk without walking to the speakers.

1. Connect via Aux/Matrix: Instead of daisy-chaining speakers, plug Speaker A into Main Out L/R and Speaker B into Aux Output 1.
2. Route the Signal: On your mixer (like a Behringer X32 or Yamaha TF), route the main mix to that Aux output.
3. Level Matching: Use the Aux Master Fader to independently pull the volume of Speaker B up or down relative to the Main mix.

Method C: Passive Speaker Systems

Passive speakers do not have volume knobs; they rely on the Power Amplifier.

1. Dual-Channel Amps: Use an amplifier with independent “Channel A” and “Channel B” volume controls.
2. Separate Feeds: Connect the left speaker to Channel A and the right (or fill) speaker to Channel B.
3. Manual Balancing: Adjust the physical attenuators on the front of the amp to set the different levels.

Hardware Comparison: Volume Control Capabilities

The Technical Risks of Uneven Volume Settings

While you can set PA speakers at different volumes, doing so haphazardly can lead to audio issues. In our experience, there are two primary pitfalls to watch out for: Phase Cancellation and Gain Staging errors.

Comb Filtering and Phase

When two speakers play the same signal at different volumes, the “louder” speaker can dominate the “quieter” one in a way that creates comb filtering. This makes the audio sound thin or “hollow” in the areas where the two sound waves overlap.

Pro Tip: If you are setting a second speaker significantly lower than the first, try to physically angle it away from the main speaker’s coverage area to minimize overlap.

Improper Gain Staging

If you turn your mixer output very low and “crank” the gain on your active speaker to compensate, you will likely introduce floor noise or “hiss.” Conversely, if you send a “hot” (loud) signal from your mixer and barely turn the speaker up, you risk clipping the input stage of the speaker.

• The Rule of Thumb: Keep your mixer output near Unity (0dB) and use the speaker’s gain knob to set the “ceiling” for the room.

Calibrating Your System with an SPL Meter

To accurately set different volumes, don’t just rely on your ears—especially if the room is empty. Empty rooms reflect sound differently than rooms filled with people.

1. Download an SPL Meter App: Use a calibrated app or a dedicated SPL Meter device.
2. Pink Noise Test: Play Pink Noise through your system at a steady level.
3. Measure Zones: Walk to the “Primary Zone” and take a reading (e.g., 95dB). Walk to the “Secondary Zone” and adjust that speaker until it hits your target (perhaps 85dB for a lounge area).
4. Check Clarity: Ensure that even at lower volumes, the high frequencies (which are directional) are still audible.

Best Practices for Balanced Sound Coverage

• Use Mono for Fills: If you are sending a different volume to a side-fill or a bar-fill speaker, consider sending a Mono Sum of your mix. Stereo signals can sound strange if the listener only hears the “Right” channel at a lower volume.
• Time Alignment: If your secondary speaker is more than 20-30 feet away from the main PA, you may need to apply a Signal Delay. Even if the volume is correct, the sound reaching the listener at different times will cause muddiness.
• Label Everything: If you are using a mixer to control multiple volumes, label your faders (e.g., “Main PA,” “Lobby,” “Front Fill”). This prevents accidental “ear-blasting” when you mean to turn up the background music.

Frequently Asked Questions

Can I daisy-chain speakers and still have different volumes?

If you are using Active Speakers, yes. You can daisy-chain them using the XLR Thru/Link output. Since the link output is usually “pre-gain,” the volume knob on the first speaker will not affect the second. You can then adjust each speaker’s volume knob independently.

Does setting different volumes damage the speakers?

No, setting speakers at different volumes will not damage them. However, ensure that the speaker receiving the lower volume signal isn’t being “starved” of a clean signal, which might tempt you to over-gain the input, leading to distortion.

Can I set different volumes on a passive speaker chain?

If you are “daisy-chaining” passive speakers (connecting one to the other via Speakon cables), they are sharing the same amplifier channel. In this specific case, you cannot set them at different volumes unless the speakers have different impedance (ohms) or power ratings, which is generally not recommended as it can overload your amplifier.
