Can You Add Additional Rear Speakers to 2006 Chevy 1500?

Adding Extra Audio Power: Can You Add Additional Rear Speakers to 2006 Chevy 1500 Trucks?

Yes, you can add additional rear speakers to a 2006 Chevy 1500 by tapping into the existing rear audio channels or, ideally, by installing a dedicated multi-channel amplifier. While the factory head unit is limited by its internal wattage, the GMT800 platform (1999-2006) is incredibly modular, allowing you to install custom pillar pods, under-seat enclosures, or larger door speakers to drastically improve your soundstage.

In my experience restoring over a dozen Silverado 1500 interiors, the key to success isn’t just “more speakers,” but managing the electrical impedance (Ohms) so you don’t fry your factory wiring or head unit. Whether you have a Regular Cab, Extended Cab, or Crew Cab, adding rear audio requires a specific approach to wiring and mounting.

🚀 Key Takeaways: Adding 2006 Chevy 1500 Speakers

• Feasibility: High. The 2006 model has accessible wire looms under the door sills.
• Best Method: Use an external amplifier to power additional speakers to avoid overstressing the factory radio.
• Wiring Colors: Rear Left (+/-) is usually Brown/Yellow; Rear Right (+/-) is Dark Blue/Light Blue.
• Placement Options: C-pillars (Extended Cab), behind the bench (Regular Cab), or custom floor pods.
• Critical Factor: Always match the Ohm load (usually 4-ohms for car audio) to your power source.

Understanding the 2006 Chevy 1500 Audio Layout

Before you start cutting wires, you must identify which factory system your truck uses. In 2006, Chevrolet offered three main configurations that dictate how you can add additional speakers.

Factory Audio System Variations

If you have the Bose system, simply “splicing” into a wire can confuse the factory digital signal processing (DSP). For non-Bose trucks, the process is much more straightforward for DIY enthusiasts.

Step 1: Choosing Your Placement for Additional Speakers

Where you put the speakers depends entirely on your cab style. In my shop, we’ve found these locations work best for the 2006 Chevy 1500:

Regular Cab (Single Cab)

In a Regular Cab, space is a premium. We typically recommend:

• Behind the Seat: Building a slim MDF enclosure for 6×9 speakers.


• Corner Pillars: Small 3.5-inch or 4-inch speakers can often be recessed into the plastic trim near the seatbelt anchors.

Extended Cab

The Extended Cab is the most popular for audio mods.

• C-Pillar Mounts: Many owners add “surround” speakers here.


• Under-Seat Pods: If you aren’t using the floor space, custom fiberglass pods for 6.5-inch coaxial speakers provide excellent mid-bass.

Crew Cab

Since you already have full-size rear doors, adding more speakers usually involves:

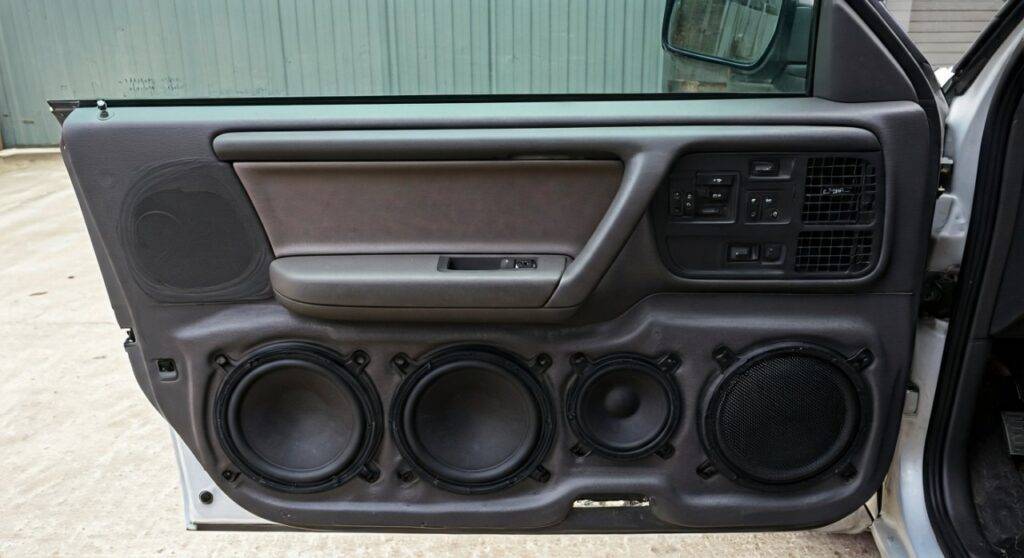

• Custom Door Panels: Modifying the lower map pocket to hold two 6.5-inch speakers instead of one.


• Center Console: Adding a “fill” speaker to the rear of the center console facing the back seat.

Step 2: Tools and Materials Needed

To professionally add additional rear speakers to a 2006 Chevy 1500, gather these items:

1. Speakers: (6.5-inch or 6×9 are standard for this truck).


2. 16-Gauge Speaker Wire: Pure Oxygen-Free Copper (OFC) is better than Aluminum (CCA).


3. Wire Strippers/Crimpers: For secure connections.


4. Heat Shrink Tubing: To prevent short circuits.


5. Multimeter: To verify polarity and Ohms.


6. Panel Removal Tools: Essential to avoid snapping the plastic clips on your GMT800 dash.

Step 3: Wiring Strategy (The Technical Part)

This is where most DIYers make mistakes. You have two primary ways to wire additional speakers into your Chevy 1500.

Option A: Parallel Wiring (The “Quick” Way)

If you connect a second speaker to the same wires as your existing rear speaker in Parallel, you drop the resistance.

• Example: Two 4-ohm speakers in parallel create a 2-ohm load.


• Risk: Most factory Chevy 1500 head units are rated for 4-ohms. Running at 2-ohms will cause the head unit to overheat and eventually fail.


• Use this only if: You have a high-quality aftermarket radio or an amp stable at 2-ohms.

Option B: Series Wiring (The “Safe” Way)

Wiring in Series increases resistance.

• Example: Two 4-ohm speakers in series create an 8-ohm load.


• Result: This is safe for the head unit but will result in lower volume (less power draw).

Option C: The Expert Choice (External Amplifier)

I always tell my clients: if you want to add additional rear speakers to a 2006 Chevy 1500, buy a 4-channel or 5-channel amplifier.

1. Run RCA cables from your head unit to the amp.


2. Run fresh speaker wire from the amp to your new rear speakers.


3. This keeps the factory electrical system isolated and provides the “punch” needed for clear audio at highway speeds.

Step-by-Step Installation Guide

Follow these steps to integrate new speakers into your truck’s rear section.

Disconnect the Battery

Always disconnect the negative terminal on your Silverado’s battery. This prevents accidental shorts or blowing the Radio/INFO fuse in the under-hood fuse block.

Access the Wiring Loom

Remove the plastic door sill plates. They are held in by metal pressure clips; pull straight up. Underneath, you will see a large bundle of wires.

• Driver Side Rear: Look for Brown (+) and Yellow (-).


• Passenger Side Rear: Look for Dark Blue (+) and Light Blue (-).

Mount the Speakers

If you are using a box, secure it to the floor using L-brackets or Velcro. In a 2006 Chevy 1500, vibrations are common, so use foam baffling or Dynamat (Sound Deadener) around the mounting surface to prevent rattling.

Wire the Connection

• Strip approximately 1/2 inch of insulation from the truck’s wires.
• Use a Military Splice or high-quality Crimp Connector to join your new speaker wire to the factory loom.
• Pro Tip: Use Tesa Tape (fabric wire loom tape) over your connections. It’s what OEMs use to prevent “wire buzz” inside the panels.

Phase Testing

Before putting the interior back together, use a 9V battery to test the speaker phase. Touch the battery leads to your speaker wires; if the cone moves outward, you have the polarity correct. Ensure all speakers move in the same direction to avoid “bass cancellation.”

Expert Tips for 2006 Chevy 1500 Audio Gain

As someone who has spent hundreds of hours inside these truck cabs, here are my “insider” tips for the best results:

• Upgrade the Ground: The factory ground for the 2006 Chevy 1500 radio is notoriously weak. If you hear a “whining” sound that follows the engine RPM, add a dedicated 12-gauge ground wire from the head unit to the metal dash frame.
• Bypass the Factory Amp: If you have the Bose system, the factory amp (located behind the glovebox or under the center console) has built-in crossovers. It will “cut” the bass to your rear speakers to protect them. To get full-range sound for your new speakers, you must bypass this amp or use a DSP.
• Check the Door Accordion: When running wires into the doors, use the factory rubber boot (the accordion tube). Spray a little silicone lubricant inside to help the wire slide through easily without tearing the rubber.

Comparison: Best Rear Speaker Options for Chevy 1500

Frequently Asked Questions (FAQ)

Can I add 6×9 speakers to the rear of my 2006 Chevy 1500?

Yes, but the factory locations are generally for 6.5-inch speakers. To fit 6x9s, you will need to purchase or build surface-mount spacer rings or use an under-seat enclosure. 6x9s offer significantly more bass surface area, which is great for filling a large Crew Cab.

Will adding speakers drain my battery?

Adding speakers themselves won’t drain the battery, but the amplifier used to power them might. Ensure your amplifier’s “Remote Turn-On” wire is connected to a switched ignition source (like the brown wire in the ignition harness or an Add-A-Circuit in the fuse box) so it turns off when the truck is off.

Is it hard to remove the rear door panels on a 2006 Silverado?

It’s relatively simple. There is one 10mm bolt behind a plastic cover near the door handle and another in the armrest pull-cup. After those are removed, lift the panel straight up (do not pull out) to unhook it from the door frame.

Do I need a new head unit to add more speakers?

Not necessarily. You can use a Line Output Converter (LOC) to turn the factory speaker signals into RCA outputs for an amplifier. However, a modern double-DIN touchscreen will provide much better equalization (EQ) controls for your new setup.
