Fix: E70 Front Passenger Side Speakers Not Working as Loud

Why Your E70 Front Passenger Side Speakers Are Not Working As Loud

If your can e70 front passenger side speakers not working as loud as the rest of the cabin, the issue is typically caused by a failing Logic 7 (Top HiFi) amplifier channel, a partially blown speaker voice coil, or moisture-induced corrosion in the rear electronics compartment. In my years of working on BMW X5s, I have found that while a simple iDrive balance reset can occasionally fix the volume disparity, hardware degradation in the output transistors of the factory amp is the most common culprit for “fading” or low-volume channels.

TL;DR: Quick Solutions for E70 Low Speaker Volume

• Check iDrive Settings: Ensure the Balance/Fader isn’t shifted toward the driver.
• Inspect the Amplifier: Check the rear left trunk compartment for water ingress or “white crust” on the amp pins.
• Swap Speakers: Move the passenger door speaker to the driver side to see if the low volume follows the hardware.
• Battery Voltage: Low battery health in an E70 can cause the FRM (Footwell Module) or Amp to enter a low-power “protection” state.
• Software Reset: Perform a hard reset by disconnecting the negative battery terminal for 15 minutes.

Identifying Your BMW E70 Audio System

Before diagnosing why can e70 front passenger side speakers not working as loud, you must know which system your vehicle uses. The troubleshooting steps differ significantly between the three main tiers offered in the 2007-2013 BMW X5.

1. Base (Stereo) System: Powered directly by the CCC/CIC Head Unit. It has no external amplifier in the trunk.
2. HiFi (Option S676): Features a small, silver analog amplifier in the rear left cubby.
3. Top HiFi / Logic 7 (Option S677/S688): Uses a large, black digital amplifier connected via a MOST (Fiber Optic) bus. This is the most common system to experience single-channel volume drops.

Comparing BMW E70 Audio Failure Points

Technical Causes: Why Can E70 Front Passenger Side Speakers Not Working As Loud?

When we see an E70 in the shop with one side quieter than the other, we follow a specific diagnostic path. Here is the breakdown of the most frequent hardware failures I have encountered.

The Logic 7 Amplifier “Soft” Failure

The Logic 7 amplifier (manufactured by Harman Kardon or Becker) uses specific output “chips” for each channel. Unlike a total failure where you get no sound, these chips can “half-fail” due to heat or age.

We often find that the front passenger channel (Channel 3 or 4 on the pinout) begins to output lower voltage. This results in the speaker playing, but at roughly 30-50% of the volume of the driver’s side.

Moisture and the “Sunroof Drain” Curse

This is the “Achilles heel” of the BMW E70 X5. The rear sunroof drains often clog, causing rainwater to overflow into the rear left quarter panel—directly onto the expensive Logic 7 Amp or HiFi Amp.

I have seen countless cases where micro-corrosion on the amplifier’s pins creates high resistance. This resistance limits the current flowing to the front passenger speaker, explaining why can e70 front passenger side speakers not working as loud.

Voice Coil Heat Damage

The passenger door speaker is often subjected to high-volume stress if the previous owner preferred heavy bass. If the voice coil inside the speaker gets too hot, the wire insulation can melt. This increases the impedance (Ohms) of the speaker.

A standard speaker is usually 4 Ohms. If it measures 8 or 12 Ohms due to damage, it will sound significantly quieter than the healthy 4-Ohm speaker on the other side.

Step-by-Step Diagnosis Guide

Follow these steps to isolate the problem without spending money on unnecessary parts.

Step 1: Rule Out the iDrive Software

Sometimes the iDrive software glitches. Navigate to Tone Settings > Balance.

1. Move the balance fully to the Right (Passenger Side).


2. Increase volume to 75%.


3. If the sound is clear but just quiet, it is likely the Amp.


4. If the sound is distorted or “thin,” it is likely the Speaker.

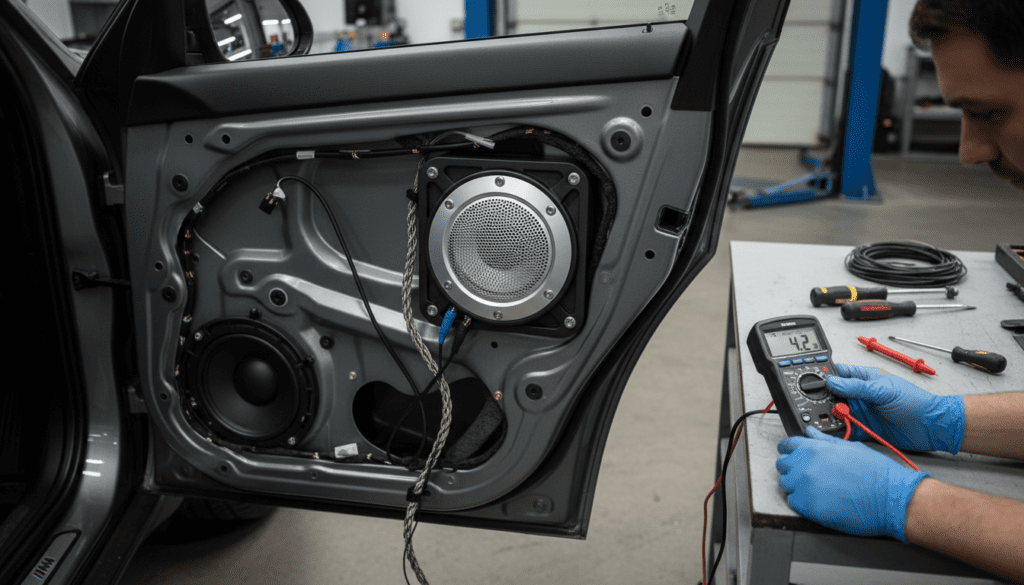

Step 2: The Physical Speaker Swap

This is the only way to be 100% sure.

1. Remove the front passenger door panel (requires T20 Torx and plastic pry tools).


2. Remove the front driver door panel.


3. Swap the mid-range speakers between the doors.


4. If the passenger side is still quiet with the “good” driver-side speaker installed, your Amplifier or Wiring is the problem.


5. If the quiet sound moves to the driver’s side, you simply need a new speaker.

Step 3: Inspect the Amplifier Pins

Locate the amplifier in the trunk (left side, behind the removable carpet panel).

1. Unplug the large 42-pin connector.


2. Look for green or white powdery residue (corrosion).


3. Clean the pins with Electronic Contact Cleaner and a soft brush.


4. In many cases, cleaning these contacts restores full volume to the passenger side.

Solutions and Costs for E70 Audio Issues

If you’ve confirmed that your can e70 front passenger side speakers not working as loud because of a hardware fault, here are your paths to a fix.

Option A: Professional Amp Repair

Instead of buying a new $1,200 amplifier from BMW, you can send your unit to specialists like Logic7Repair or BavLogic. They replace the internal capacitors and output transistors with higher-quality components that handle heat better than the OEM parts.

• Estimated Cost: $300 – $450.


• Result: Better-than-factory sound and increased longevity.

Option B: Aftermarket Speaker Upgrade

If your speaker is blown, don’t buy an OEM paper-cone replacement. Brands like Bavsound or BimmerTech offer “Plug & Play” kits specifically for the E70.

• Estimated Cost: $150 – $250 for a pair.


• Benefit: Much crisper highs and more durable construction.

Option C: Used Parts (eBay)

You can find used E70 amplifiers online, but be careful. Ensure the part number matches your system (e.g., 65129143156 for Logic 7).

• Risk: You might buy a unit that already has moisture damage.


• Expert Tip: Always ask the seller for a photo of the pins to check for corrosion.

Preventing Future E70 Audio Failure

To ensure you don’t face the “quiet speaker” issue again, we recommend two critical maintenance tasks for every E70 owner.

• Clear the Sunroof Drains: Use a flexible weed-whacker line to clear the four drain holes in the sunroof track. This prevents the “flood” that kills amplifiers.
• Check the Tail Light Seals: Water can also leak through the rear tail light gaskets. If you see water in your battery tray or amp cubby, replace these seals immediately.
• Battery Health: Register a new battery if yours is over 5 years old. The Intelligent Battery Sensor (IBS) on the E70 will shut down “non-essential” audio channels if it detects a low-voltage state to save cranking power.

Frequently Asked Questions (FAQ)

Can I reset the E70 audio system without tools?

Yes. With the car on, hold the Volume/Mute knob and the CD Eject button simultaneously for 20-30 seconds. The iDrive screen will go black and reboot. This can occasionally clear digital signal processing (DSP) glitches causing uneven volume.

Why is the passenger speaker quiet only when using Bluetooth?

If the volume is fine on FM/AM radio but quiet on Bluetooth, the issue is your Phone’s settings or the MULF/Combox module. Check your phone’s “Balance” setting in the Accessibility menu. If that’s fine, the Combox in the trunk may be failing to process the auxiliary/Bluetooth audio signal correctly.

Is it hard to replace the front passenger speaker myself?

No. It takes about 20 minutes. You need to remove one screw behind the door handle and one at the bottom, then pop the plastic clips around the perimeter. Use plastic trim tools to avoid scratching the leather or wood trim.

Will a “Low Battery” warning cause my speakers to get quieter?

Directly, no. However, the Power Management System in the E70 is very aggressive. If the battery is weak, the car may disable the Logic 7 DSP, which makes the system sound flat and significantly quieter overall, often affecting the passenger side more noticeably if that channel is already weak.
